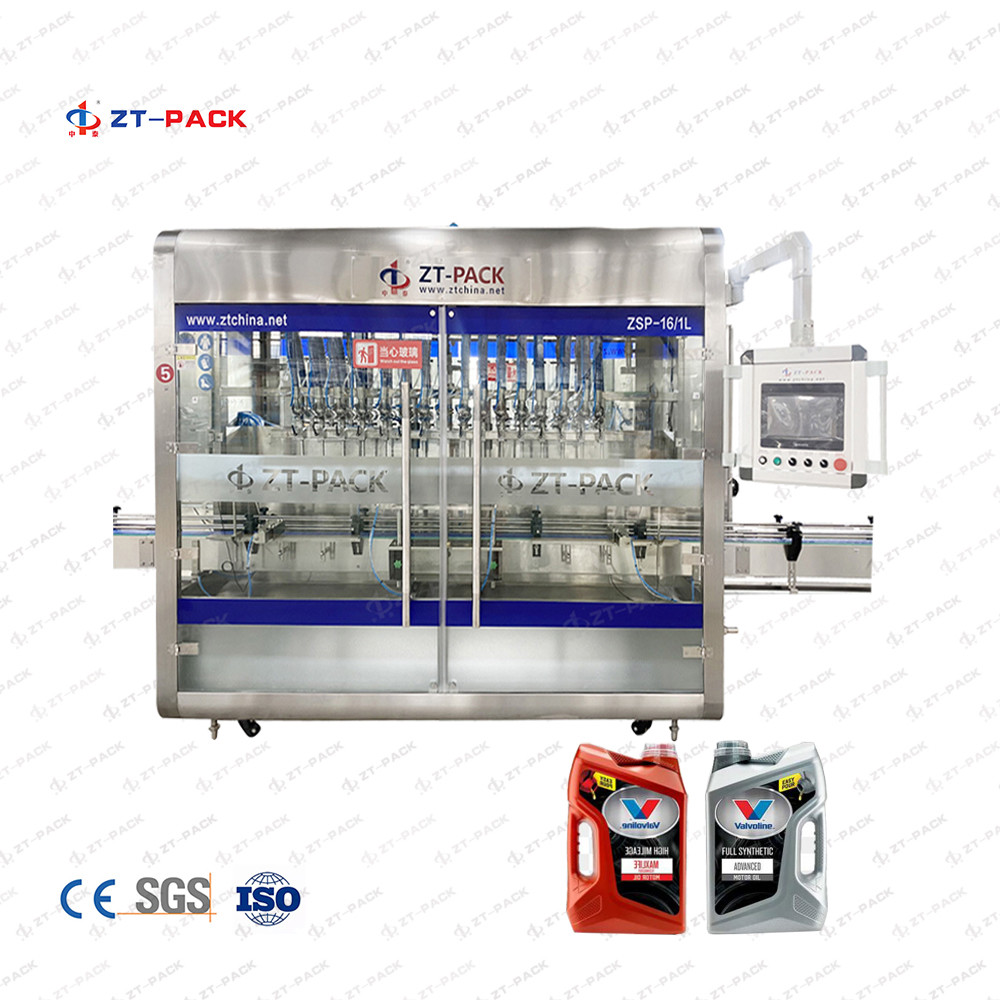

High Speed Automatic Package Machine For Lubricant Oil 500ml-5L Plastic Bottle Car Oil Engine Oil Filling Packing Line
Description
High Speed Automatic Package Machine For Lubricant Oil 500ml-5L Plastic Bottle Car Oil Engine Oil Filling Packing Line is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).
Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L -1000L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L )
contact us for more details
Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(500mL) | 1500B/H | 2000 B/H | 2500 B/H | 3000 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ40mm——Φ100mm Height:80mm——280mm |
| Filling accurate | ≤100ml:+ -1.5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml |
| Neck diameter | ≤Φ10mm ( can be designed accordingly) |
| Filling range | 50ml——5000ml (From ZT-PACK) |
| Filling System | Gravity Time Control |
| Air pressure | 0.6Mpa |
| Power supply | 220V ；50HZ / 60HZ |
Details:
Product Tags:
|
|

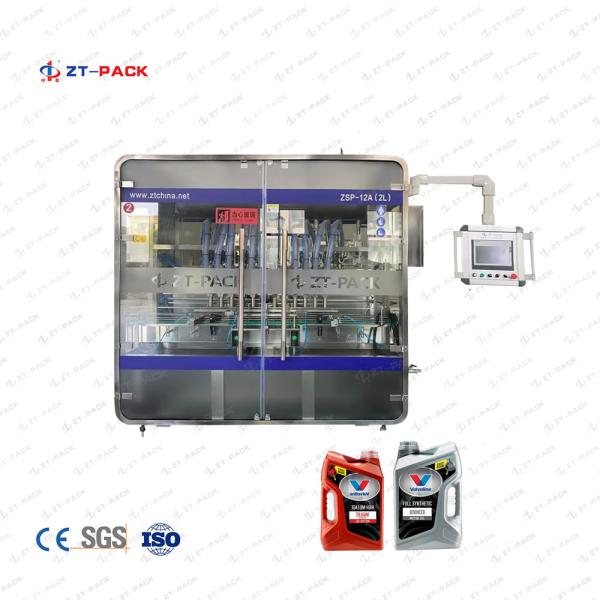

500ml Motor Oil Filling Machine Images
|
