4 Heads Rotary Aluminum Cap Screw Capping Machine Full Automatic

Name: 4 Heads Rotary Aluminum Cap Screw Capping Machine Full Automatic
Brand: ZT-PACK
Price: 1 USD

4 Heads Rotary Aluminum Cap Screw Capping Machine Full Automatic Manufactures

Brand Name : ZT-PACK

Model Number : FG-4

Certification : CE,ISO,SGS,SABER

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 45sets per month

Delivery Time : 30days

Packaging Details : Wooden Case

Product name : rotary capping machine

cap material : aluminum

application bottle diameter : 45-90mm

Key Selling Points : Long Service Life

Voltage : 220V

Cap diameter : 22-32mm

Weight : 800 KG

Driven Type : Electric

Core Components : PLC

Warranty : 1 Year

Contact Now

Hot Sale 4 Heads Full-Automatic Rotary Aluminum Cap Screw Capping Machine

Description:

Aluminum Cap Crimping Machine is suitable for closing aluminum caps PLC control system, rotary type structure, the machine is with function of automatic cap feeding ,loading and crimping.

 The crimping head is made up by strong stainless steel, by 4-wheel balance principle design, the crimping force is uniformly which makes good sealing effect.

 Bottle feeding star wheel equip with clutch device, machine stops automatically if bottle get stuck.

 And there is automatic positioning device for bottle neck which assure the capping accuracy and stability.
 The containers are fed onto the rotary screw capper and are separated and positioned on individual capping stations. The caps are presorted and fed on the sliding table of the machine. The continuously rotating chucks are lowered over the cap to pick up and secure the caps, then apply the caps to the containers. When the preset applied torque value is achieved, the magnetic clutch disengages, the chuck releases the cap and the closed container is discharged from the machine.
 With 4 mechanical hands ,the mode is suitable for multi-geometry containers,It bispatches caps at fast speed without any cap reversed . Supplying cap system and mechanical hands work together in phase . When the cap is tightened , bottle and cap stand still relatively ,and the clutch separates immediately so that able and not apt to be damaged .

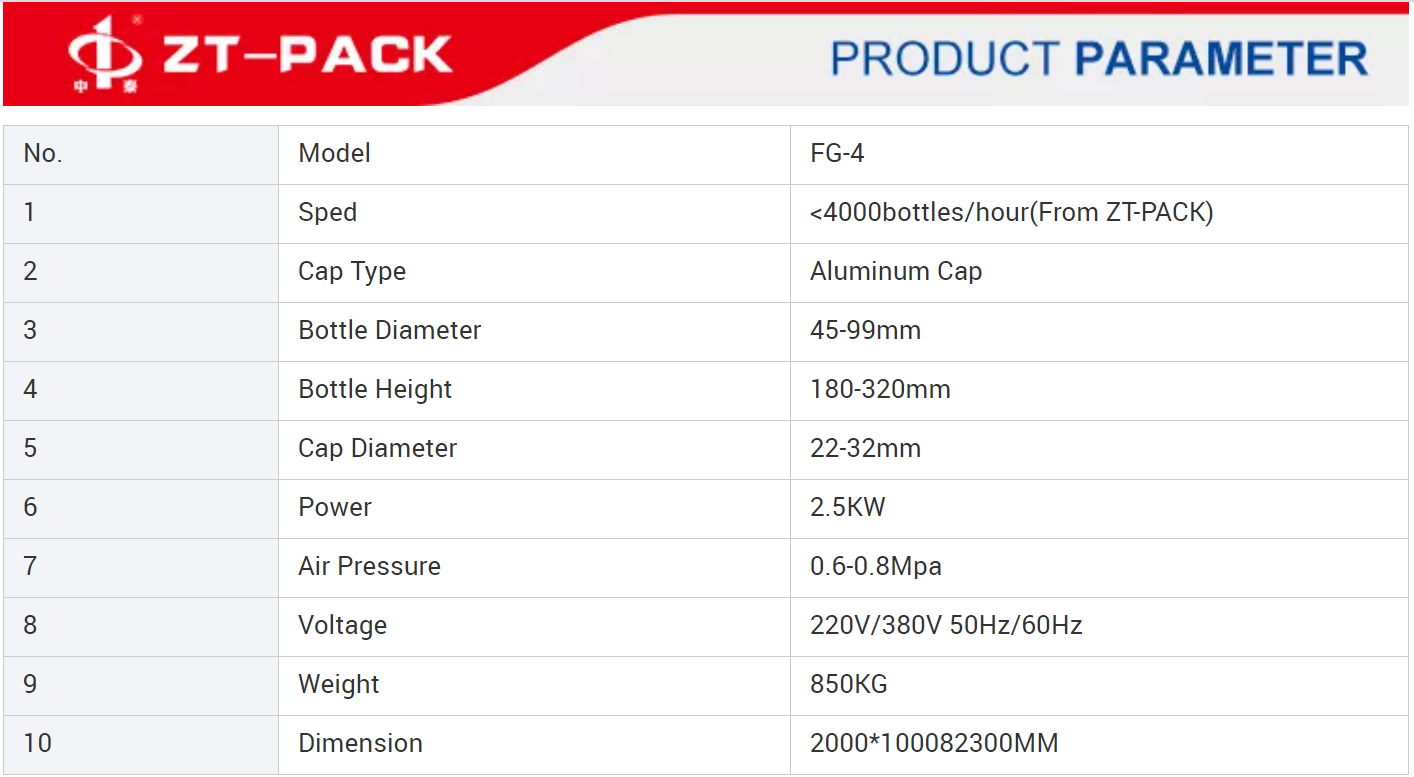

Parameter:

4 Heads Rotary Aluminum Cap Screw Capping Machine Full Automatic

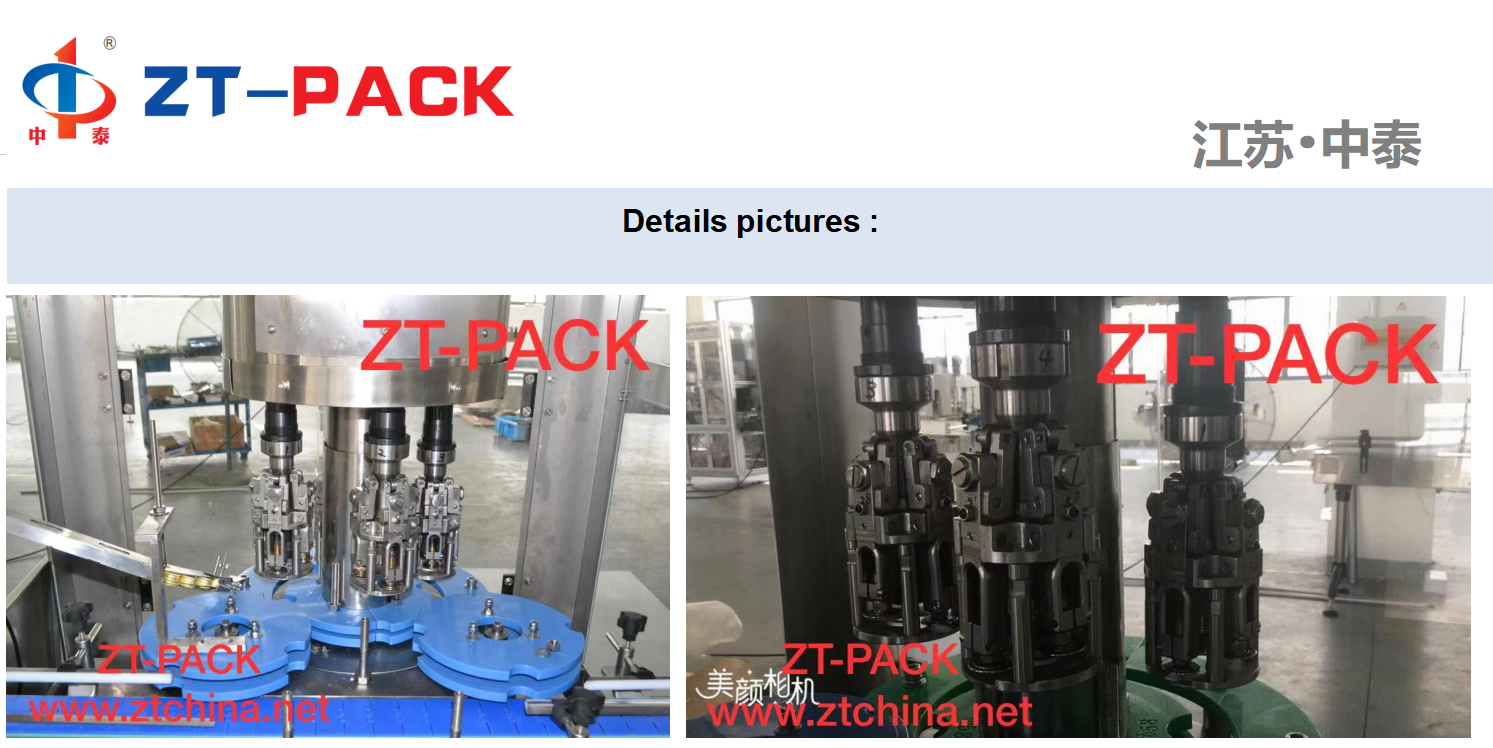

Details:

Product Tags:

Aluminum Cap Screw Capping Machine

4Heads Rotary Screw Capping Machine

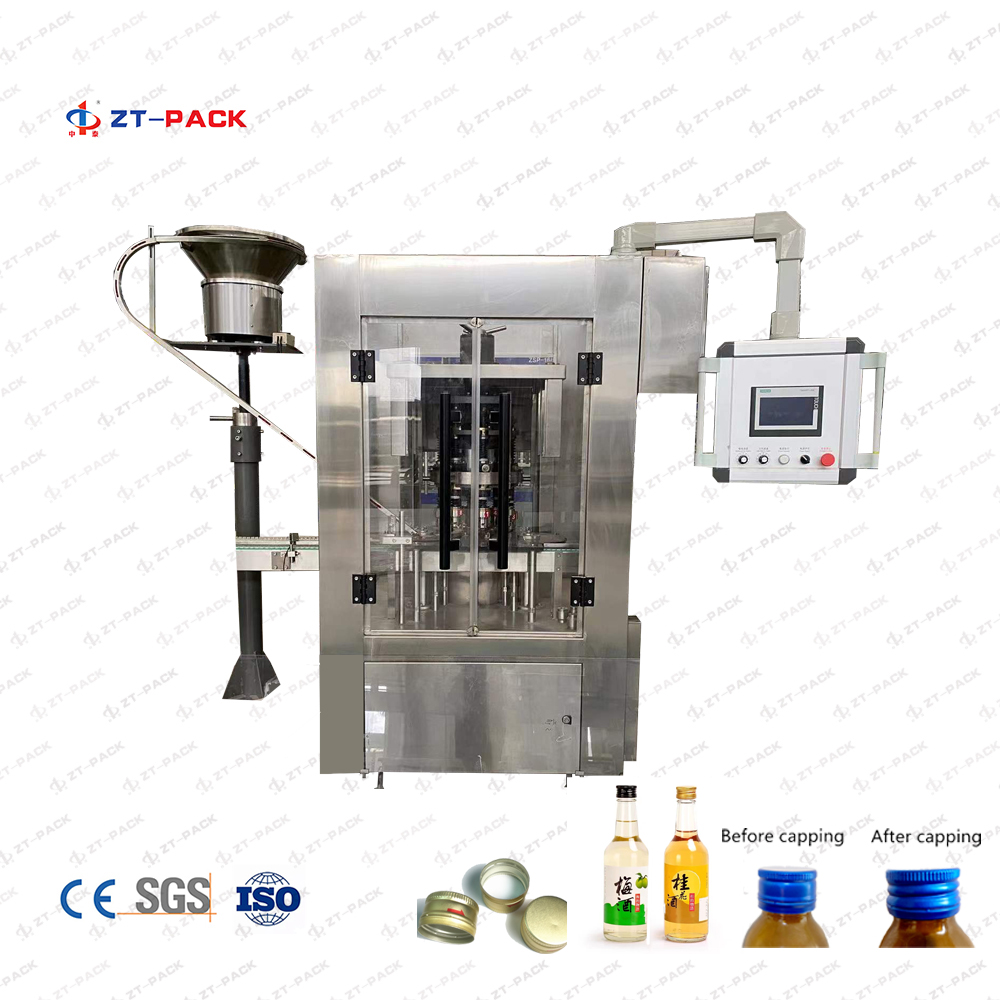

4 Heads Rotary Aluminum Cap Screw Capping Machine Full Automatic Images
